Compact Digital Media Receiver w/ 2.7" Display

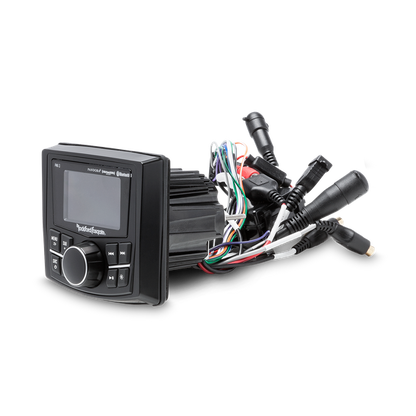

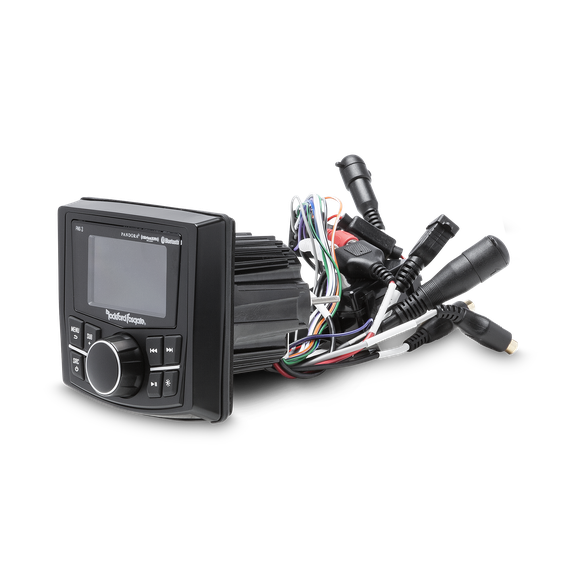

The PMX-3 is a ground up designed digital media receiver for marine and motorsports applications with full color 2.7" TFT display. This unit not only has the functionality you desire such as a custom designed GUI interface and menu system built with "ease of use" in mind, but also features SiriusXM tuner compatibility, Pandora radio control via USB or Bluetooth and full iPhone support with folder browsing capability.

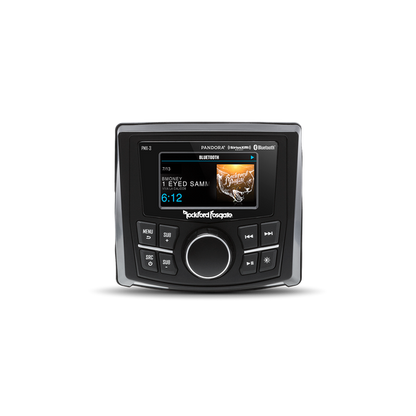

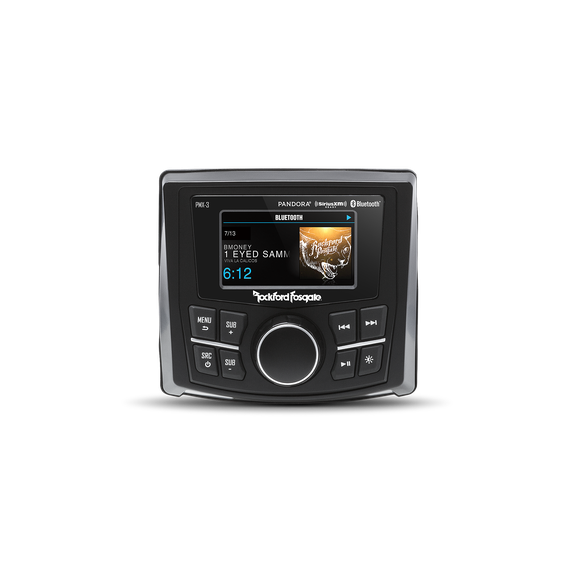

The PMX-3 compact digital media receiver, designed for marine and motorsports applications, features a 2.7"full color TFT display for optimum viewing even in full sun that is optically wet bonded to prevent any dust or moisture penetration.

The PMX-3 is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination and front mounted sub level controls. Additionally, with features such SiriusXM tuner compatibility, Pandora control capabilities and Bluetooth audio steaming with album art support1, this unit becomes a true command center of any system. Output flexibility comes with a 4x50 @ 2ohm internal amplifier or front and rear/sub output RCA's allowing the addition of aftermarket amplifiers for more power and output.   1Android devices equipped with limited functionality. Please refer to owners manual for details.

We've also upgraded the unit to feature a reverse camera composite video input with reverse trigger control and a day/ night display mode for better viewing in low light conditions. Finally, add in the EEprom memory system, custom GUI interface and wired remote expansion capabilities and you have the only media receiver you'll ever need.

FEATURES AT A GLANCE

• 2.7" Full color Thin Film Transistor display

• SiriusXM-Ready™ (SXV300 module) with color channel logos (18 channel presets)

• Wired remote ready (up to 3 remotes)

• Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in electronic devices to store data that must be saved when power is removed

• Integrated voltage gauge w/ low voltage alert

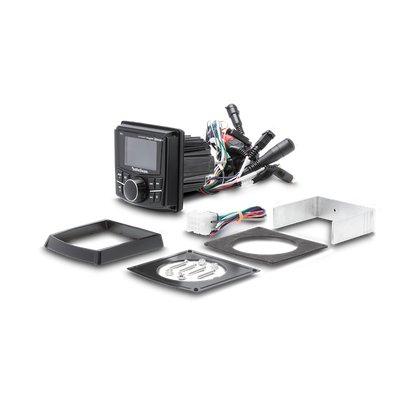

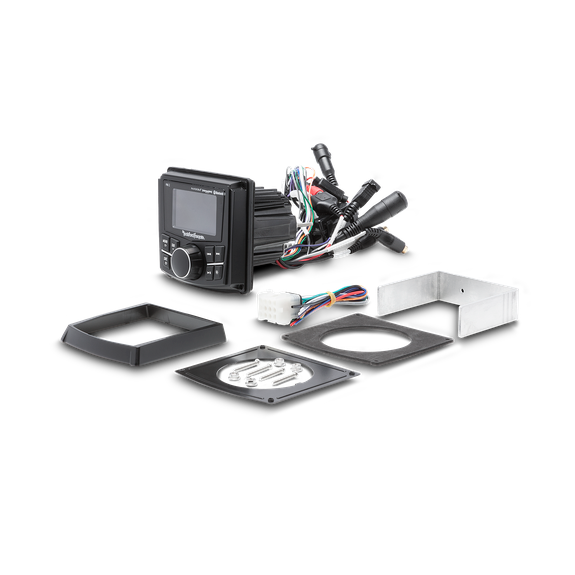

• Two-piece mounting system to secure panel to mounting surface

• Upgradeable Firmware and Bluetooth Software via USB

• Front Panel Sub Control

• IPX6 Marine Grade for prevention of water intrusion

• ASTM: B117 Salt Fog & D4329 UV Exposure Tested

• Internal power amplifier 4x45W 2Ω stable

• Single Zone output with 2 channels front full range and 2 channels rear/ subwoofer selectable rated at 2 volt

• Automotive grade AM/FM Radio, Weatherband Radio digital tuner. Supports Radio Data System (RDS) to receive broadcast information

• Licensed Pandora control (Apple direct USB or BT/Android via Bluetooth)

• Made for iPhone apple certified

• Bluetooth streaming audio (A2DP) protocol version 1.4 installed

• Rear USB With 1A Charging Only

• Rear AUX-In (L/R)

• Simple Secure Pairing (SSP)

• Display album art from connected iPhones on the radio display

• Folder browsing via BT connected iPhones

• Dedicated DSP audio processors for each zone with independent 7 Band EQ + Punch EQ

• Selectable high pass and low pass crossover points for each zone

• Selectable crossover slopes of 12dB or 24 dB for each zone

• Adjustable input gain for each source

• Waterproof Rotary Encoder Volume Control

• Tactile convex buttons for easy identification

• White LED Button Illumination

• Wired and front panel illumination control

• Wet Bonded Display

• Epoxy coated circuit board for water resistance

• Direct composite video input connection

• External trigger input to activate reverse camera mode

• Day/Night display mode

• 2-Year Warranty

FLAC
The Free Lossless Audio Codec is an audio format similar to MP3, but lossless, meaning that ...

Pandora®
Pandora® (also known as Pandora Internet Radio) is a music streaming and automated music recommendation service.

Element Ready™ | Source Units
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration

SiriusXM-Ready®
This radio is ready to accept SiriusXM® programming.

Built In Bluetooth®
Built In Bluetooth®

Made for iPod/iPhone
This device supports the Apple "Made for iPod/iPhone" protocol.

Made for Android
This device supports the Google "Made for Android" protocol.

USB Playback
This source unit supports playback from a USB device.

ASTM B117 & D4329 Tested
ASTM B117 & D4329 Tested

IPX6 Water Intrusion Rating
Water projected in powerful jets from any direction shall have no harmful effects.
